Machines >> 2 motors combined machines >> SC-SRD / SC-SCD

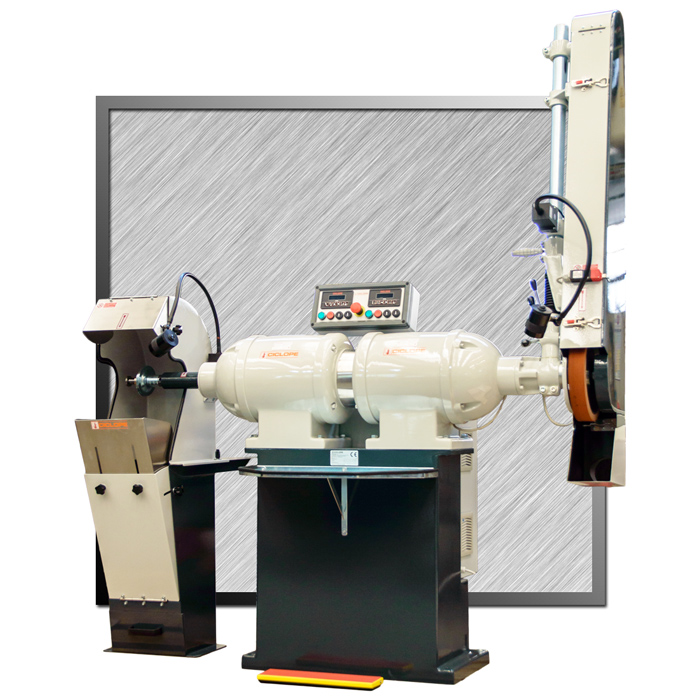

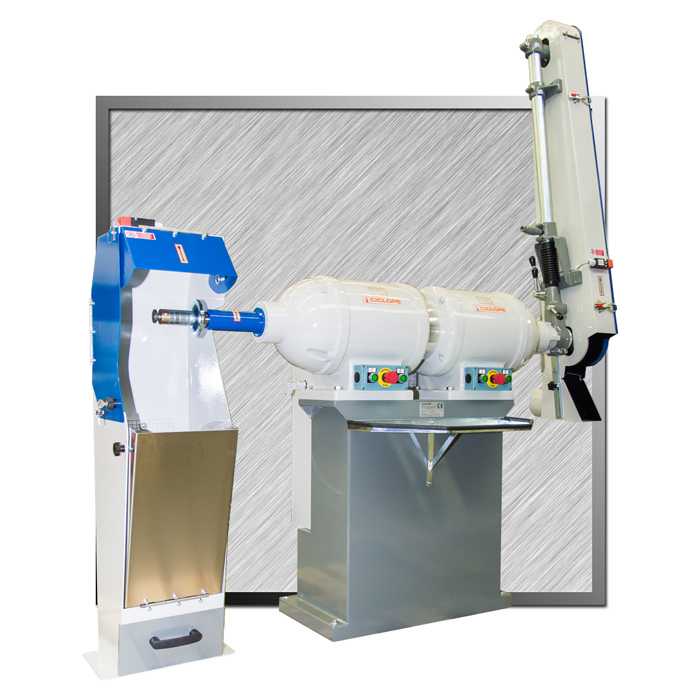

SC-SRD / SC-SRD
Combined double motor belt grinding and polishing machine, engineered to be used by two operators.
Available with single or double speed motors, and with variable speed with inverter.
3000x50 mm abrasive belt for works on Ø300 mm contact wheel.
Ø25x110 mm spindle with wheel guard.
SC-SRD: motors with shaft on oil lubricated bushings.
SC-SCD: motors with shaft on bearings.
Electric equipment with low voltage 24V controls
Electronic brake.
Options: stop foot pedal, special belt lenght, special wheel and belt guard, high/low speed motors
| SC-SRD/ SC-SCD 1v | ||
| model | 40/2 | 60/2 |
| Voltage-Frequency | 3P+T 400V-50Hz | |
| Power output [HP] | 4+4 | 6+6 |
| Speed [rpm] | 3000 | 3000 |
| Abrasive belt [mm] | 3000x50 | 3000x50 |
| Contact wheel [mm] | Ø300x50 | Ø300x50 |
| Spindle [mm] | Ø25x130 | Ø25x130 |
| Buffing wheel [mm] | Ø300x50 | Ø350x50 |
| Weight [Kg] | 540 | 550 |
| SC-SRD / SC-SCD 2v | ||
| model | 40/24 | 60/24 |
| Voltage-Frequency | 3P+T 400V-50Hz | |
| Power output [HP] | 4/3+4/3 | 5/4+5/4 |
| Speed [rpm] | 3000/1500 | 3000/1500 |
| Abrasive belt [mm] | 3000x50 | 3000x50 |
| Contact wheel [mm] | Ø300x50 | Ø300x50 |
| Spindle [mm] | Ø25x130 | Ø25x130 |
| Buffing wheel [mm] | Ø300x50 | Ø350x50 |
| Weight [Kg] | 545 | 555 |
| SC-SRD / SC-SCD Mv | ||
| model | 40/2-Mv | 600/2-Mv |
| Voltage-Frequency | 3P+T 400V-50Hz | |
| Power output [HP] | 4+4 | 6+6 |
| Speed [rpm] | from 600 to 3600 | |
| Abrasive belt [mm] | 3000x50 | 3000x50 |
| Contact wheel [mm] | Ø300x50 | Ø300x50 |
| Spindle [mm] | Ø25x130 | Ø25x130 |
| Buffing wheel [mm] | Ø300x50 | Ø350x50 |
| Weight [Kg] | 560 | 570 |
