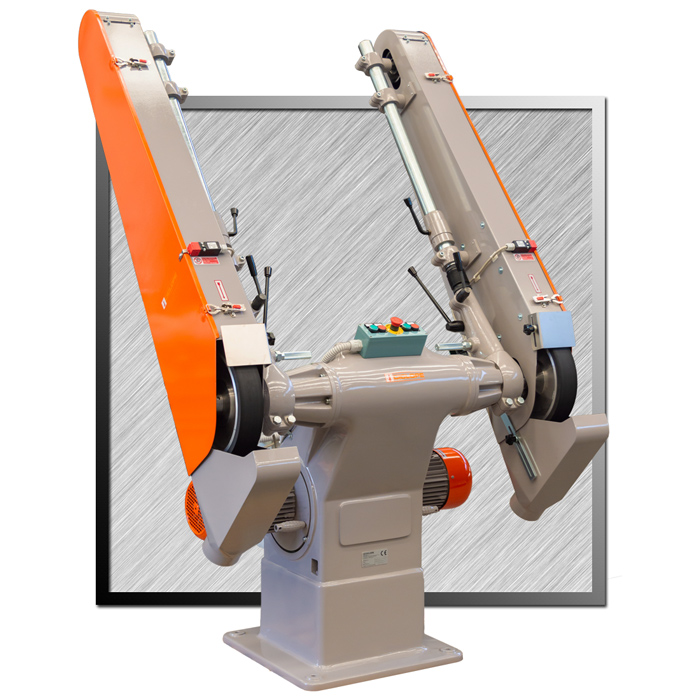

Auriga C
Double motor belt grinder, enginereed to be used by two operators.
Available with: 3 speeds (3 different belt transmission ratio) and 6 speeds (double speed motor plus 3 transmission ratio) with self braking motors, and variable speed with inverter.
Cast iron machine frame and mandrels supports.
3500x75 mm belt heads for works on Ø350x75 mm contact wheels.
Electric equipment with low voltage 24V controls
Options: stop foot pedal, special belt lenght.
| Auriga C 3 speeds | ||
| model | Auriga C1 3v | Auriga C2 3v |
| Voltage and frequency | 3P+T 400V-50Hz | |
| Power output [HP] | 4+4 | 5,5+5,5 |
| Speed [rpm] | 1400/1700/2000 | |
| Abrasive belt [mm] | 3500x75 | 3500x75 |
| Contact wheel [mm] | Ø350x75 | Ø350x75 |
| Weight [Kg] | 640 | 660 |
| Auriga C 6 speeds | ||
| model | Auriga C1 6v | Auriga C2 6v |
| Voltage and frequency | 3P+T 400V-50Hz | |
| Power output [HP] | 4/3+4/3 | 5/4+5/4 |
| Speed [rpm] | 700/1400 - 850/1700 - 1000/2000 | |
| Abrasive belt [mm] | 3500x75 | 3500x75 |
| Contact wheel [mm] | Ø350x75 | Ø350x75 |
| Weight [Kg] | 680 | 700 |
| Auriga C Mv | ||
| model | Auriga C1 Mv | Auriga C2 Mv |
| Voltage and frequency | 3P+T 400V-50Hz | |
| Power output [HP] | 4+4 | 5,5+5,5 |
| Speed [rpm] | from 600 to 3600 | |
| Abrasive belt [mm] | 3500x75 | 3500x75 |
| Contact wheel [mm] | Ø350x75 | Ø350x75 |
| Weight [Kg] | 690 | 710 |
